The AVDT-BOB is a compact Dante break out box with embedded Digital Signal Processing. The AVDT-BOB has state-of-the-art analog microphone preamplifiers for a very high audio dynamic and quality over Dante at a very contained price:

* There is a minimum order quantity (MOQ) for the products "AVDT-BOB-AS8io" and "AVDT-BOB-ADX8io."

  • 4 Dante inputs named “Dante In1” up to “Dante In4” are coming from Dante network via the Gigabit Ethernet Main or Aux ports.
  • 2 to 4 analog Mic/Line inputs named “Mic/Line1”, “Mic/Line2”.. are coming from the Mic/Line In connectors
  • 2 to 4 analog Line outputs named as “Out1”, “Out2″… are connected to Line Out connectors.
  • 60dB gain in 3dB steps with Equivalent Noise (EIN) as low as -123dBu.

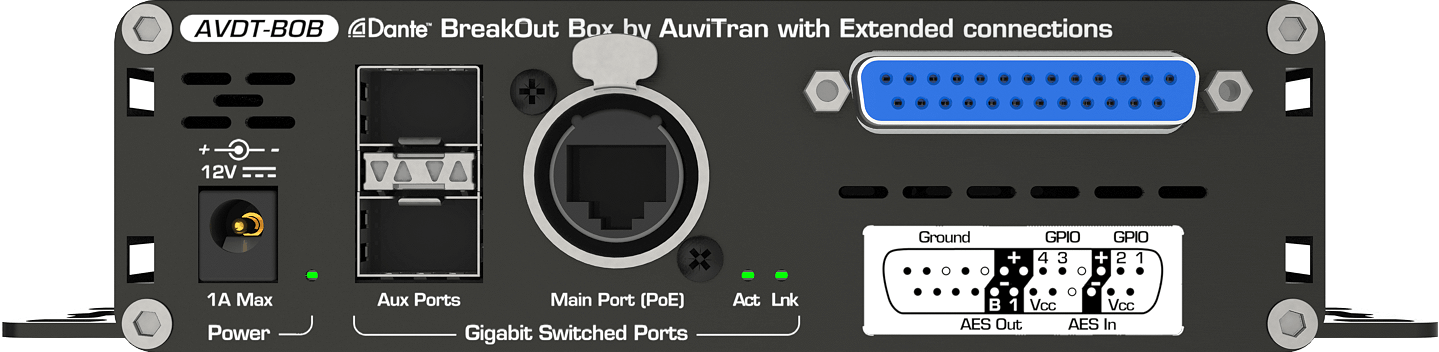

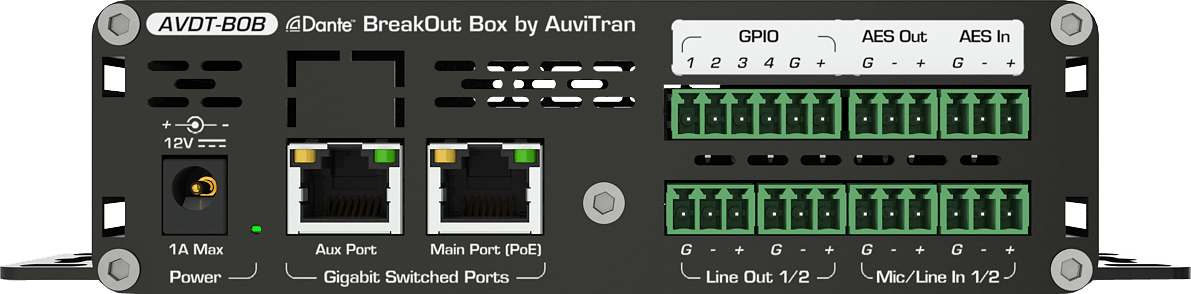

  • AES/EBU stereo input/output on Euroblock (-ADE- versions) or on SUBD25 (-ADX- versions).

The AVDT-BOB has a DSP to process and mix audio signal at the source and at the output. The AVDT-BOB features a dual core ARM processor associated with a large amount of flash memory for a universal and multiplatform remote control over IP (iOS, Android, Windows, Mac OS, Linux).

They provide to the AVDT-BOB a powerful processing with an efficient, easy and smart remote control:

  • Smart embedded DSP for advanced internal audio mixing and effect processing
  • 4 independent mixers of the 6x to 8x inputs
  • 8 equalizations and 8 limiters compressors
  • Build-in dual ARM RISC processor with Web 2.0 HTML5 interface
  • Direct remote without any installation via Mac OSX, Windows, and Linux computer or via iPad, iPhone or Tablet, Smartphone


AxP-PSU12V1A: Optional auxiliary power supply 12V 1A for AVDT-BOB.

BOB-RACKKIT: Optional kit for mounting up to 3x AVDT-BOB in a 1U 19″ rack.
